Does not come with a whip!***

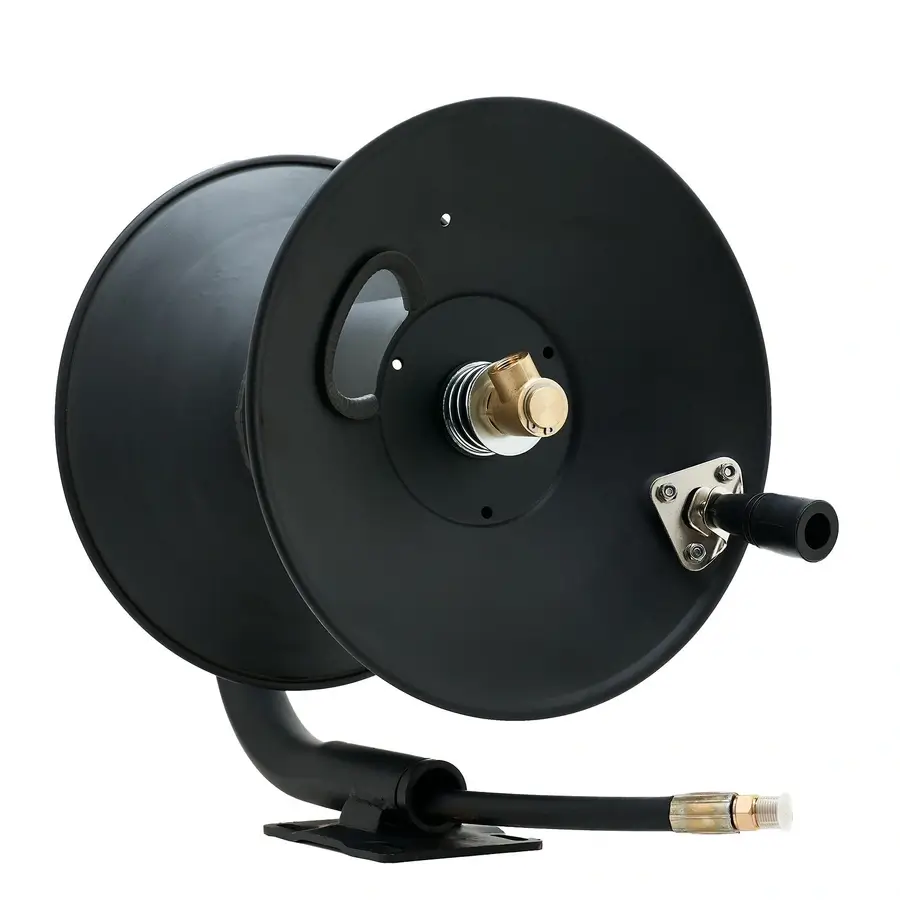

MTM Hydro's Hose Reels offer a consolidated and organized method for storing your KobraJet hose! Hardware is not included for mounting as this is specific to your setup, however the high grade brass swivel is recognized by many to outperform most other models in the cold water hose reel division.

Simply slide the swivel end of your Kobrajet hose through the opening provided at the side of the reel core and install the 3/8" Male NPT threads into the 3/8" Female NPT threads of the swivel. Do not make a Quick Coupling joint at the swivel as there is not enough space and the bend in the line is too severe. Be sure to allow a small amount of slack at the swivel joint and use the red hose fastener provided to secure the hose at this joint. Using a Whip Line connected to your pump, connect to the 3/8" Male NPT hose reel inlet. When planning, add an extra foot to the distance so as not to bend the Whip Line too severely. Lastly, install the handle with the hardware provided.

Before leaving your hose reel unattended, always engage the locking mechanism on the side of the reel.

This Hose reel is rated for cold water use only with a 12.5" Height x 15.5" Length x 10" Depth.

This model has a fixed pipe with a fitting inlet for installation of the whip line, which will require a whip line to work! Depending on your setup, you will need additional connectors to connect the reel to the whip. Both ends of the whip are 3/8th male, and the reel's bend is also 3/8th male (where it connects to your source/whip). A common setup is using the below to connect whip to reel:

https://carzilla.ca/collections/brand-mtm-hydro/products/mtm-brass-qc-socket-3-8-fpt-24-0069

https://carzilla.ca/collections/brand-mtm-hydro/products/mtm-hydro-stainless-steel-3-8-qc-female-plug-24-0081

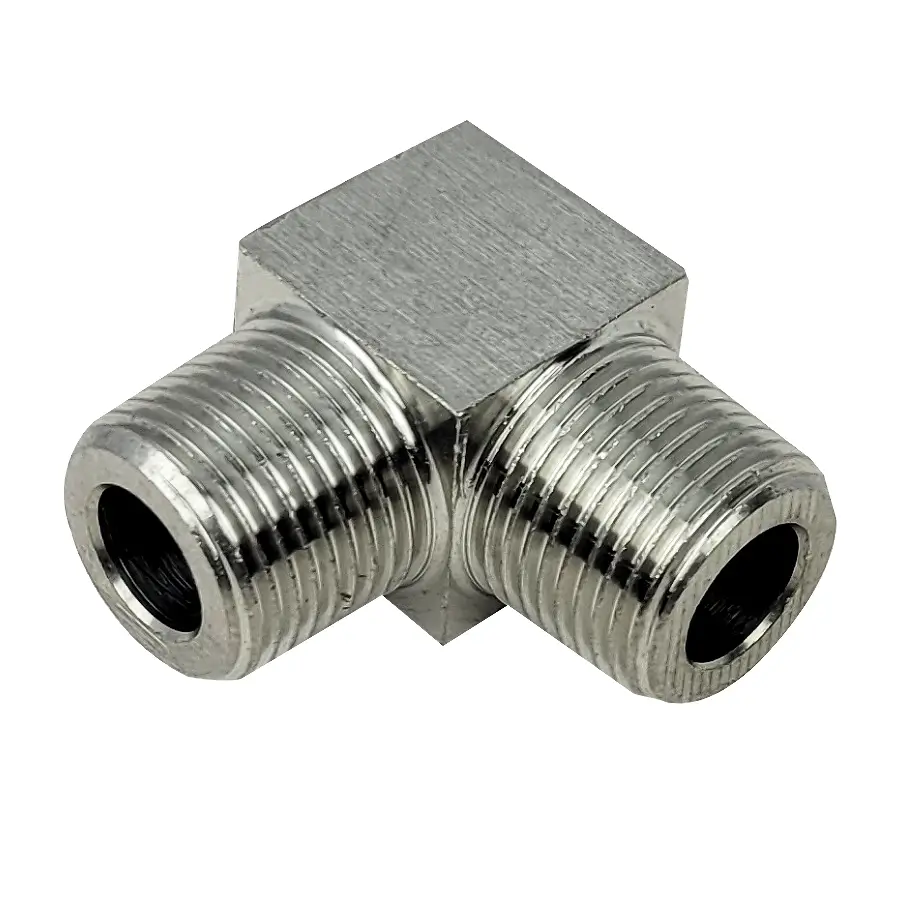

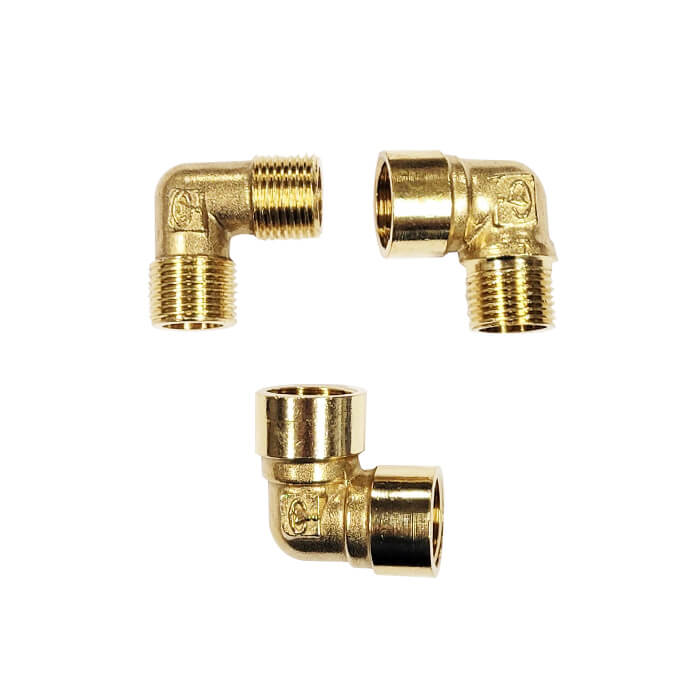

The inlet (L bent) is 3/8th male, the same threaded connector as the whip's ends, thus you'll need the above connectors to QC the whip to the reel. The outlet is a female 3/8th, the kobrajet hose will thread right into it.

Bracket Install Holes positioned: 3.25-3.5” horizontally & 3.25-3.5” vertically.

Example setup: Washer > 24.0448 (if it's 14mm M22) > 24.0081 > Whip > 24.0081 > 24.0063 > Reel > 100ft hose > SGS28

K1700 > 24.0448 > 24.0081 > Whip > 24.0081 > 24.0063 > Reel > 30.0049 (50ft black hose) > 24.0063 > 10.5007 (gun) > Nozzles.

Size	Height	Total Width	Depth	Reel Wall width	Reel core width	Core diameter	Inlet	Base to Center of core	Hole Diameter	Mounting Bracket
50	16.5"	15"	13.5"	7.5"	4"	5.5"	3/8" Male NPT- 9" Pigtail	10"	0.41"	Yes
100	16.5"	16.14"	13.5"	8.66"	5.12"	5.5"	3/8" Male NPT- 9" Pigtail	10"	0.41"	Yes
150	16 .5"	15"	13 .5"	10"	6.375"	5.5"	3/8" Male NPT- 9" Pigtail	10"	0.375" x 2.2" Slot	4 slots-4.25" W x 3.375" D
200	16.5"	20.5"	13 .5"	16"	12.5"	5.5"	3/8" Male NPT- 9" Pigtail	10"	0.375" x 2.2" Slot	4 slots-4.25" W x 3.375" D
